Apticom | AOE-70202

OSFP 400G LR4 10km 0-70°C


400GE
4x CWDM
10km
0-70°C

OSFP
OSFP
OSFP

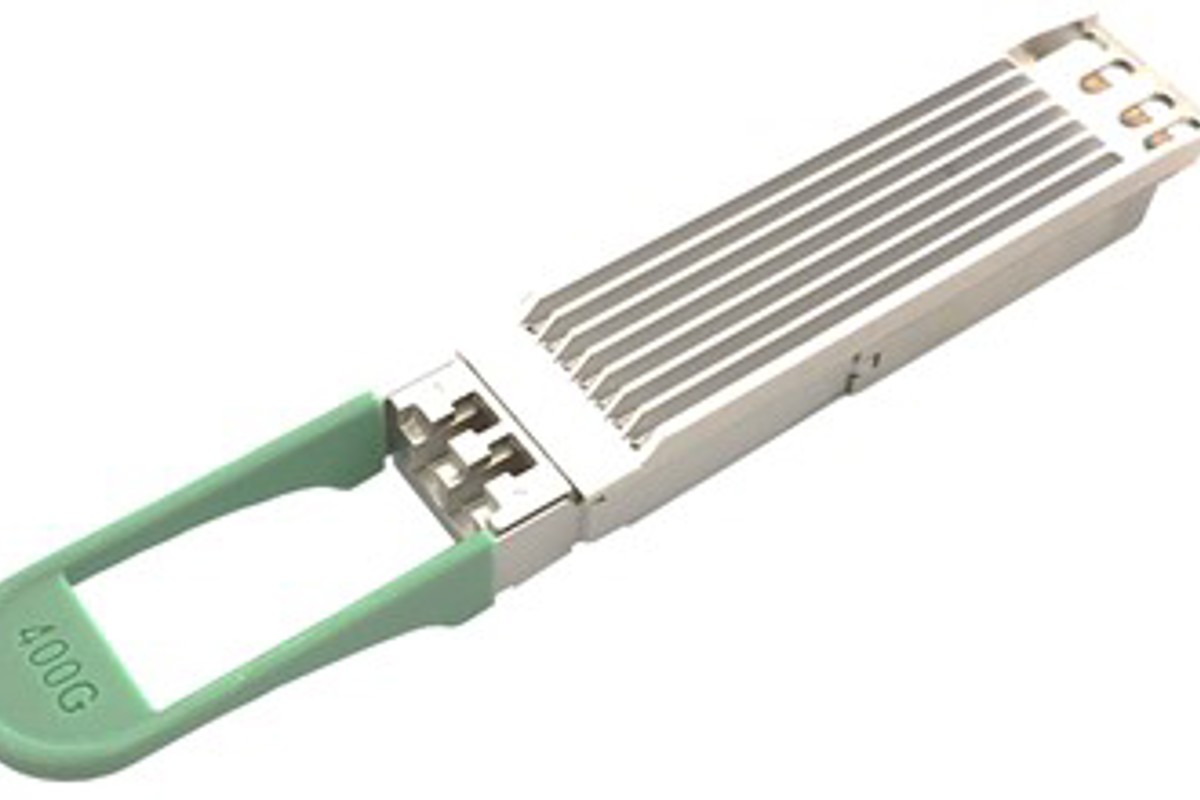

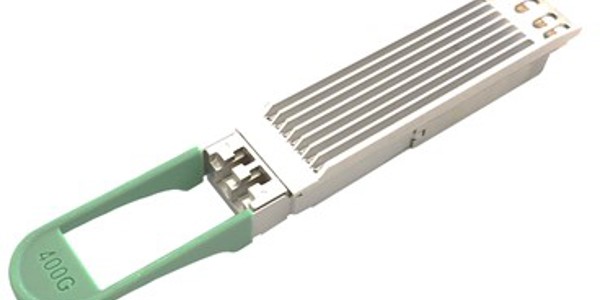

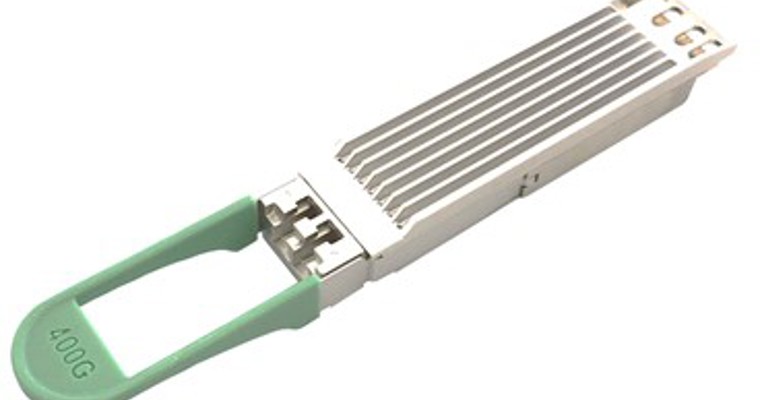

AOE-70202 is a high-performance transceiver for 400 Gigabit Ethernet links up to 10km over a single mode fibre pair. It’s compliant with the OSFP Multisource Agreement (MSA) and hot pluggable.

The module converts 8x 25GBd PAM4 electrical data input signals into four 50GBd PAM4 wavelength multiplexed optical output signals, which are combined at the optical output port.

Reversely, on the receiver side, the optical input signal is de-multiplex and converted into 8x 25GBd PAM4 electrical output data streams.

OSFP
PART NUMBER AOE-70202
PRODUCT TYPE Optical Transceivers
FORM FACTOR OSFP
BIT RATE 400G
REACH (DISTANCE) 10km
APPLICATION 400GBE
WAVELENGTH 4x CWDM
TYPE OF MEDIA Dual SMF
TEMPERATURE 0-70°C
CONNECTOR Duplex LC
Safety: IEC 62368-1: 2014
Laser safety: IEC 60825-1:2014
  IEC 60825-2:2004+A1+A2
EMC: IEC 55035:2017
  IEC 55032:2015
RoHS: IEC 63000:2018
